KEY FEATURES:
· Easy to use and install
· Program and control from RS-232 port (115k,8,n,1)
· Web based Interface, program and control (optional)
STANDART MPEG-2 ENCODER:
· 4:2:0 MP@ML Real Time MPEG-2 Video / Dual-Stereo Audio Encoder
· Analog composite (PAL / NTSC) or SD-SDI digital input
· The module encodes an analogue video and audio signal and outputs an MPEG2 transport stream.
· The encoder supports the formats SIF (352×288 Pixel), HD1 (352×576 Pixel) and D1 (720×576 Pixel) with net data rates from 0,5 Mbit/s to 15 Mbit/s. A 20 bit stereo audio channel is already included in this data rate.
H.264 ENCODER (optional):
· The new H.264 Encoder is designed for the transmission of high-resolution picture data, especially for HD-TV applications.
· Supported formats are HD (1920×1080px) and SD (PAL, NTSC) with net data rates from 1,5 Mbit/s to 31 Mbit/s.
· Included in this data rate is a stereo audio channel between 32kbit and 384kbit.
· The encoder board outputs a transport stream to a 8 bit wide TS interface with clock and frame sync signal.
· The video input can be chosen between YPbPr, CVBS and HDMI; the picture resolution is up to 1080p@60Hz.

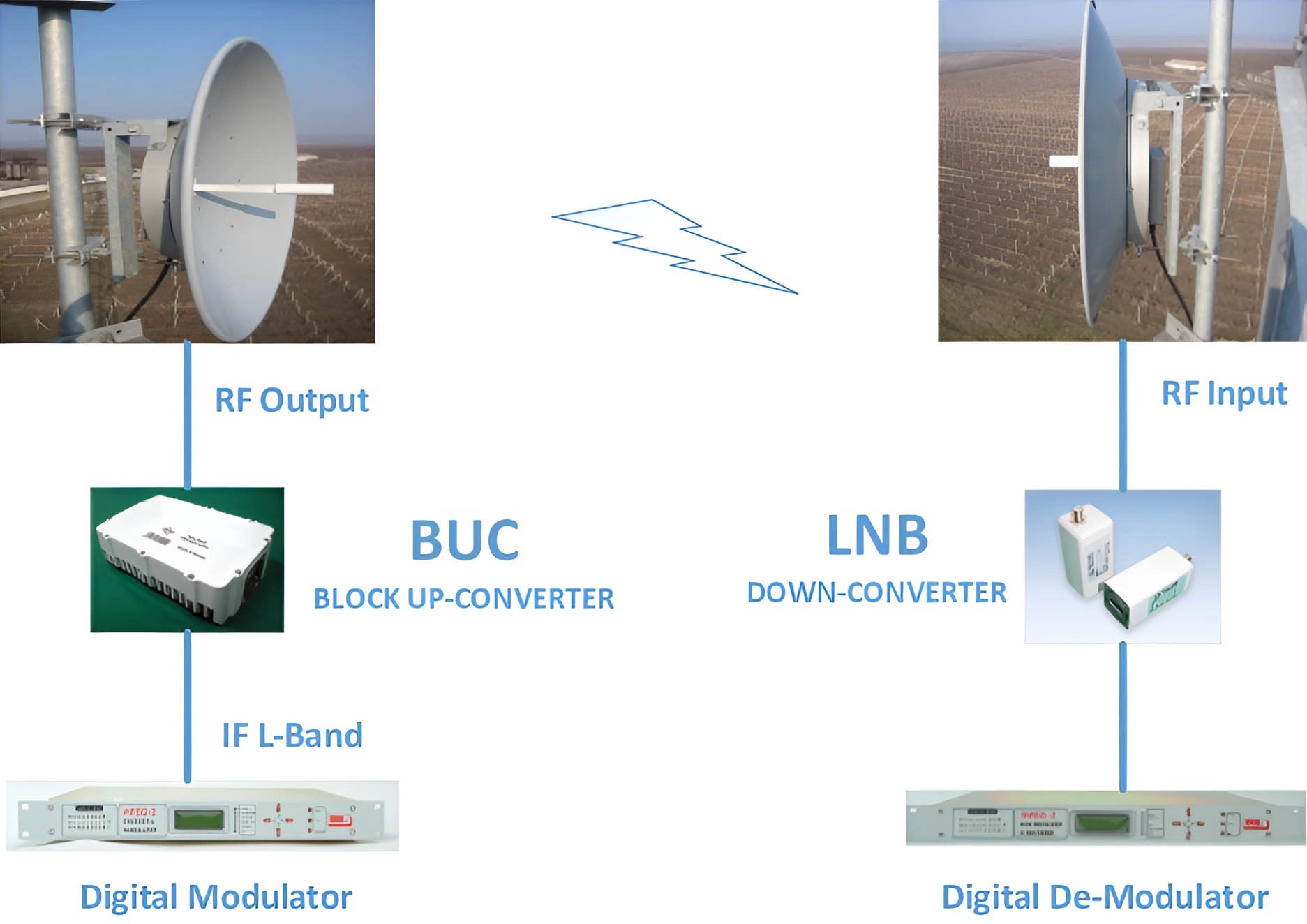

MODULATOR:
· 100mW RF modulator for DVB-S, -S2, -C, -T (2k and 8k mode) or 8VSB. In the I/Q modulator, the signal output is modulated directly on transmission frequency.
· The IF signal is filtered on the transmission frequency to get better spurious at the RF output channel.
DECODER:
· The decoder for DVB-S, -S2, -C, -T (2k and 8k mode) or 8VSB.
